Technical Specifications

General

Number of Ports

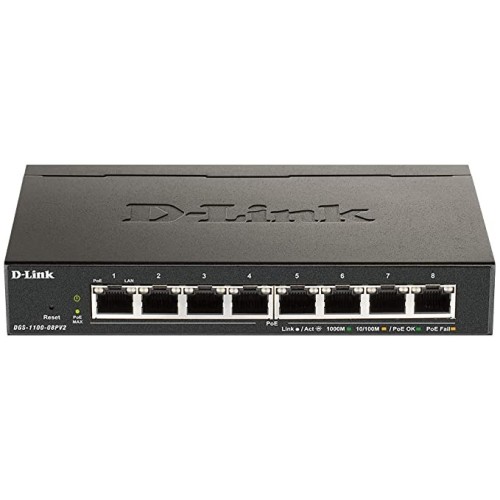

• 8 x 10/100/1000 (DGS-1100-08P)

Port Standard & Functions
• IEEE 802.3, 802.3u, 802.3ab compliant
• IEEE 802.3x Flow Control
• IEEE 802.3az EEE compliant
• 802.3af (DGS-1100-08P/-10MP/-24P/-26MP)
• Half/Full-duplex operation at 10/100Mbps
• Full-duplex operation at 1000Mbps
• Auto-Negotiation for each port
• Auto MDI/MDIX

Switching Capacity
• 16Gbps (DGS-1100-08 & DGS-1100-08P)

Max. Forwarding Rate
• 11.9 Mpps (DGS-1100-08 & DGS-1100-08P)

MAC Address Table Size
• 8K Entries (DGS-1100-05/-08/-08P/-16/-24/-24P)

Packet Buffer
• 2Mbits (DGS-1100-08 & DGS-1100-08P)

Forwarding Mode
• Store and Forward

Power over Ethernet (DGS-1100-08P)

PoE Standard
• 802.3af (DGS-1100-08P)

PoE Capable Ports
• Ports 1-8 (DGS-1100-08P)

PoE Power Budget
• 64W (DGS-1100-08P)

Physical & Environmental

Power Input
• 100 to 240 VAC, 50 to 60 Hz
     • External Universal Power Supply (DGS-1100-05/-08/-08P)

Max. Power Consumption
• 78.8 W PoE on; 5.2 W PoE off (DGS-1100-08P)

Standy Power Consumption
• 2.0 W (DGS-1100-08P)

Ventilation
• Fanless (DGS-1100-05/08/08P/16/24)

Acoustics
• 0 dB(A) (DGS-1100-05/08/08P/16/24)

Heat Dissipation
• 268.9 BTU/hr (DGS-1100-08P)

Operating Temperature
• 32 to 104 °F (0 to 40 °C) (DGS-1100-05/-08/-08P)

Storage Temperature
• 14 to 158 °F (-10 to 70 °C) (DGS-1100-05/-08/-08P)

Operating Humidity
• 10% to 95% non-condensing (DGS-1100-05/-08/-08P)

Storage Humidity
• 5% to 95% non-condensing (DGS-1100-05/-08/-08P)

Dimensions (W x D x H)
• 7.4” x 4.7” x 1.5” (190mm x 120mm x 38mm) (DGS-1100-08P)

Weight
• 1.6 lbs (0.71 kg) (DGS-1100-08P)

Certifications
• FCC Class A
• CE Class A
• VCCI Class A

Safety
• UL/cUL
• CE LVD

MTBF
• 708.219 Hours (DGS-1100-08P)

Software Features

VLAN
• Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
     • Supports 32 static VLAN groups (DGS-1100-05/-08/-08P)
• Max. 4094 VIDs

L2 Features
• Flow Control
     • 802.3x Flow Control
     • HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
     • IGMPv1/v2 Snooping
     • Supports 32 Groups (DGS-1100-05/-08/-08P)
• 802.3ad Link Aggregation
• 2 groups, 2-4 ports per group (DGS-1100-08/-08P)
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
     • One-to-One
• Statistics
     • Tx Ok
     • Tx Error
     • Rx Ok
     • Rx Error

QoS
• 802.1p Quality of Service
• 4 queues per port (DGS-1100-05/-08/-08P/-16/-24/-24P)
• Queue Handling
     • Strict
     • Weighted Round Robin (WRR)
• Bandwidth Control
     • DGS-1100-05/-08/-08P
          • Port Based
          • Ingress: minimum granularity 8 Kbps
          • Egress: minimum granularity 8 Kbps

Security
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• Static MAC Address
     • Max. 32 entries (DGS-1100-05/-08/-08P)

Management
• Web-Based GUI:
     • Supports IPv4 (DGS-1100-05/-08/-08P)
• SmartConsole Utility (DGS-1100-05/08/08P)

D-Link Green
• Power Saving by:
     • Link Status
     • Cable Length (DGS-1100-05/-08/-08P)
     • Compliant with Energy Efficient Ethernet (IEEE 802.3az)
• RoHS Compliant

RFC Standards (DGS-1100-05/-08/-08P)
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 951 BootP Client
• RFC 1542 BootP/DHCP client
• RFC 1945 HTTP/1.0
• RFC 2647 802.1p
• RFC 2236, 4451 IGMP Snooping
