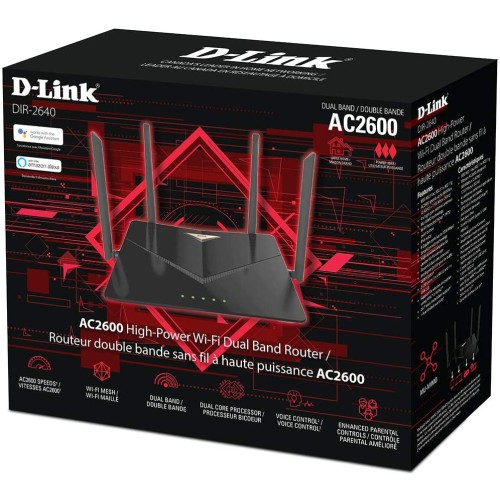

DIR-2640 AC2600 High-Power Wi-Fi Router

Technical Specifications

General

Device Interfaces•   IEEE 802.11 ac/n/g/b/a wireless LAN•   One 10/100/1000 Mbps Gigabit Ethernet WAN port•   Four 10/100/1000 Mbps Gigabit Ethernet LAN ports•   One SuperSpeed USB 3.0 port•   One USB 2.0 port

LEDs•   Power•   Internet•   USB 3.0•   2.4 GHz WLAN•   5 GHz WLAN•   USB 2.0

Antenna Type•   Four external antennas

Wi-Fi Data Rate•   2.4 GHz•   Up to 800 Mbps1•   5 GHz•   Up to 1732 Mbps1

Standards•   IEEE 802.11ac•   IEEE 802.11n•   IEEE 802.11g•   IEEE 802.3ab•   IEEE 802.1q•   IEEE 802.11b•   IEEE 802.11a•   IEEE 802.3u•   IEEE 802.1p

Minimum Requirements•   Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher•   Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, or other JavaScript-enabled browser •   Network Interface Card•   Cable/DSL modem or other Internet service provider equipment with Ethernet port

Functionality

Security•   WPA / WPA2 (Wi-Fi Protected Access) - Personal•   WPS (Wi-Fi Protected Setup)

Advanced Features•   Web setup wizard•   QoS (Quality of Service)•   DMZ (De-militarized Zone)•   D-Link Wi-Fi App•   Firewall - Network Address Translation (NAT)•   Guest Zone•   IPv6-Ready

Physical

Dimensions•   285 x 196 x 72 mm (11.2 x 7.7 x 2.8 in)

Weight•   580 g (1.28 lbs)

Power Adaptor•   Input: 100 to 240 V AC, 50 / 60 Hz•   Output: 12 V, 2.5 A

Temperature•   Operating: 0 to 40 °C (32 to 104 °F)•   Storage: -20 to 65 °C (-4 to 149 °F)

Humidity•   Operating: 10% to 90% non-condensing•   Storage: 5% to 95% non-condensing

Certifications•   IC
