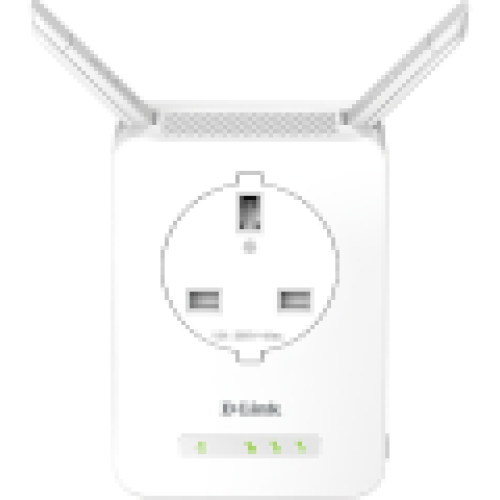

N300 Wi-Fi Range Extender with Power Passthrough

DAP-1365

The DAP-1365 is a portable plug-in Wi-Fi range extender that lets you extend an existing wireless network. You can place it within your home’s existing Wi-Fi network to increase its range. Its power passthrough design ensures that your electrical outlet remains available to power another electrical appliance.

More than Just a Wi-Fi Extender

Wireless N technology helps to extend wireless range in your home or office and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a fast, reliable wireless connection. Alternatively, use the built-in Fast Ethernet port to create a personal Wi-Fi hotspot in hotel rooms with wired Internet access. You can also add Wi-Fi connectivity to computers, smart TVs and games consoles with Ethernet ports.

Easy to Set Up, Easy to Use

Setting up the N300 Wi-Fi Range Extender is simple. Just use the one-touch configuration function by pushing the WPS push-button on the DAP-1365 and on the router or access point you want to extend, and the DAP-1365 will automatically configure itself for you. Alternatively, you can use the supported QRS Mobile app on your iOS or Android smartphones or tablets to set up the DAP-1365 easily without a computer.

Smart Signal Indicator makes Placement a Snap

The DAP-1365 features a Smart Signal Indicator, which makes finding the optimal location for your Wi-Fi extender quick and easy. It eliminates the guesswork by giving you instant visual feedback on the signal strength, so you can quickly test out multiple locations to find the best placement.

Technical Specifications

General

Device Interfaces

    802.11n/g/b Wireless LAN
    10/100 Fast Ethernet Port
    Reset Button
    WPS Button

LEDs

    Status/WPS
    Smart Signal Indicator LED

Standards

    IEEE 802.11n
    IEEE 802.11g
    IEEE 802.11b
    IEEE 802.3u

Antennas

Two foldable external antennas

Plug Type

Region dependent

Functionality

Wireless Security

    Wi-Fi Protected Access (WPA/WPA2)
    WPS (PBC)

Advanced Features

    D-Link One-Touch Extender Setup

Device Management

    Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
    Web UI

Physical

Dimensions

    92 x 67 x 59.55 mm (3.62 x 2.64 x 2.34 inches)

Weight

    144.3 grams

Power

    Input: 110 to 240 V AC, 50/60 Hz
    Maximum Consumption: 2.8 W

Temperature

    Operating: 0 to 40 °C (32 to 104 °F)
    Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

    Operating: 10% to 90% non-condensing
    Storage: 5% to 95% non-condensing

Certifications

    EMI/EMC
    FCC
    CE
    CB
    UL
    Wi-Fi Certified

1 Maximum wireless signal rate derived from the IEEE Standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
