Designed with small businesses in mind

High performance Switching

Layer 2+ (Static routing)

8, 24 and 48 ports models, PoE+ and non PoE

1G SFP and 10G SFP+ Uplinks

Advance Security features

Cloud based Aruba Instant On mobile app and web based GUI

Remote Management

The Aruba Instant On cloud-based mobile app allows to set up, manage, and monitor the network from anywhere at any time

No hidden fees

All included in the price of the hardware – there are no hidden subscription or licensing fees

Advance Security

Protect your network from unauthorized access by allowing to segment traffic and define access to each area of the network.

Easy of use

Plug-and-play switches that work together with Instant On APs right out of the box.

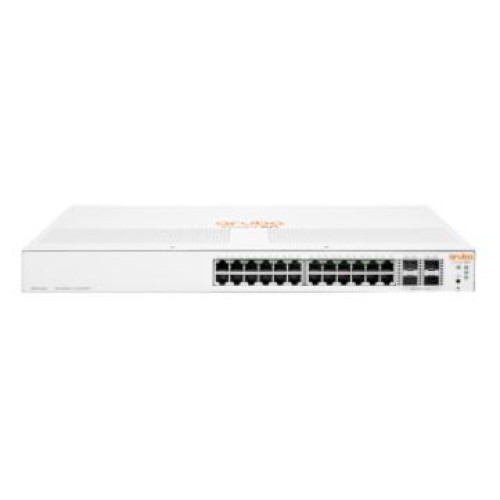

Product Differentiator (long)Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.

Power Consumption Description22.6 W maximum, 9.3 W idle

Input Voltage100 - 127 / 200 - 240 VAC

External I/O Ports24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports

Switching Capacity128 Gbps

Throughput95.23 Mpps, maximum

Memory and ProcessorARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer

Management FeaturesAruba Instant On Portal, Web browser, SNMP Manager

Warranty Standard StatementLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration

Weight (imperial)5.32 lb

Weight (metric)2.41 kg

Product Dimensions (imperial)1.73 x 17.42 x 8.72 in

Product Dimensions (metric)4.39 x 44.25 x 22.15 cm
